Infinity GroupLtd.
Building & Lighting Controls

AleoBlue, SimplBlue & PLC Multipoint

Infinity Group embraces innovation and change. That is why we are helping usher in the simplistic approach of wireless controls. We believe in the potential that wireless technology can bring to lighting and want to make it as simple as possible. The technology installed today has to be nimble and ready for future scalability. We believe our manufacturers have the absolute best controls on the market at a price point you can afford!

ALEO LED Lighting

AleoBlue Bluetooth Controls

The Future is Blue. Bluetooth brings the benefits of being wireless, interoperable, scalable and future-proof.

Features

  • Fastest low power communication
  • Scalability to thousands of devices
  • No single point of failure
  • Advanced encryption standards
  • Self-healing mesh network
  • Over the air updates

Benefits

  • Reduced latency
  • Reliable and secure
  • High performance
  • Future-proof
  • Easy to commission / provision
  • No special remote to commission

Lighting zones and grouping, manual control, zone linking, per-luminaire and per-zone daylight control, occupancy and vacancy sensing. No additional wiring or central gateway. Pre-commission projects in the browser app by uploading floor plans and defining zones before you reach the site.

Specification & Application Guide (PDF)aleolighting.com
Cover of the Aleo Wireless Lighting Controls Specification and Application Guide

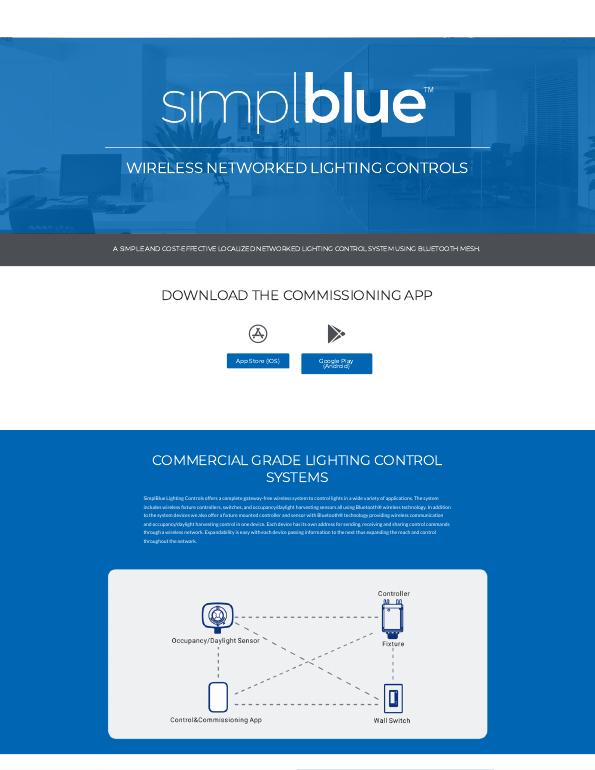

SimplBlue Wireless Networked Lighting Controls spec sheet
ALEO LED Lighting

SimplBlue Lighting Controls

A simple and cost-effective localized networked lighting control system using Bluetooth mesh.

A complete gateway-free wireless system with fixture controllers, switches and occupancy/daylight harvesting sensors, all using Bluetooth® wireless technology. Network bridges and onsite internet are not required, and devices are line powered for long-term reliability.

System functionality

  • Networking of luminaires
  • Individual addressability
  • Occupancy sensing
  • Daylight harvesting / photocell
  • High-end trimming
  • Flexible zoning & continuous dimming

Devices

  • SPIR-OSDL/BTEZ fixture-mount occupancy & daylight sensors (DC and AC), 40′ coverage on a 40′ ceiling
  • WM-BA-DMFK/BTEZ 5-button wireless wall switch
  • WLC/BTEZ 2.5A 120–277V power pack, 0–10V dimming
  • Commissioning app for iOS and Android
SimplBlue Spec Sheet (PDF)Ask about controls
Made in the USA · 30+ Years of Lighting Controls

PLC Multipoint Lighting Controls

PLC Multipoint photosensors are considered the “Gold Standard” throughout the lighting industry. From a single daylight controller to networked, BACnet-ready relay panels, every PLC Multipoint product is manufactured in the USA in a UL508A-certified facility.

plcmultipoint.com

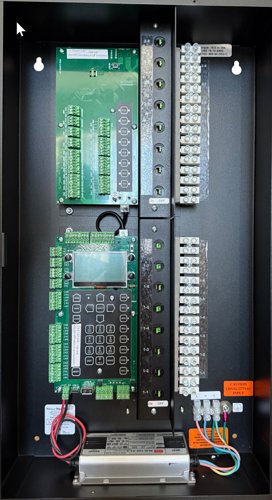

PLC Multipoint Tandem3
Networked Lighting Control Panel

Tandem3

The next generation of Tandem: a feature-rich, all-in-one interior/exterior lighting control system with up to 48 relays in a single enclosure, programmable from the integral keypad or remotely with PLC Designer3 software.

  • 8 to 48 relays per enclosure (increments of 8), 20A mechanically latching
  • Up to 48 0-10V dimming outputs (1:1 per relay)
  • Up to 192 CANbus digital switch addresses
  • Astro, Normal and Open/Close schedules with holidays
  • BACnet IP/MSTP, RS-485 and LAN/WAN remote access
  • NEMA 1 standard; NEMA 3R, 4X and flush-mount kits
Data Sheet (PDF)Tandem3 Release (PDF)
PLC Multipoint LCM-ASTRO
Exterior Contactor Panel

LCM-ASTRO

A cost-effective, easily configurable stand-alone, contactor-based lighting control system with programming optimized for exterior applications: canopy, security, sign and exterior lighting.

  • 2 or 3 zones with photo, astronomical time clock, remote switching and timed override
  • Factory-wired 4- or 8-pole 30A lighting contactors
  • Up to 4 contactors per main panel, 12 per expansion panel
  • 20A zone relays with Hand-Off-Auto switches
  • Four-line LCD with front-panel programming
  • Can be used to meet Title 24; 5-year warranty
Data Sheet (PDF)Contactors Data Sheet (PDF)
PLC Multipoint LC8
Single-Point Daylight Controller

LC8

A stable, accurate low-voltage controller that switches a dry contact in response to daylight, driving electrically held contactors or relays or feeding an Energy Management System. Used with PLC remote-mounted CES or MAS photosensors.

  • Adjustable ON/OFF setpoints, 0–7,500 Fc range
  • Form C SPDT relay output, 3A @ 24VDC
  • Input time delay and adjustable 5–95% dead band
  • Fail-safe: lights on if sensor is lost
  • Parking lots, perimeter lighting, storage areas
  • RoHS, Made in USA; 5-year warranty
Data Sheet (PDF)

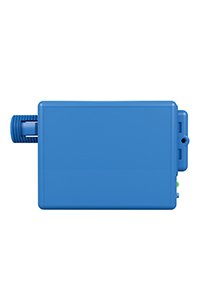

PLC Multipoint Cadence Wireless
Wireless Sensors & Load Controllers

Cadence Wireless

PLC Multipoint’s Cadence wireless line, powered by SensorWorx, links occupancy sensors, photocells, wall stations and power packs with no low-voltage wiring. All Cadence products are made in the USA.

  • OCS-950 wireless power pack: switches 20A loads, links up to 50 devices, optional 0-10V dimming
  • OCS-851 wireless wall switch & load controller: links up to 30 sensors/switches
  • OCS-200/250 ceiling sensors (250 adds daylight harvesting) and OCS-400 wide-view/hallway sensors
  • 80′ line-of-sight wireless range (40′ through walls)
  • Can be used to meet ASHRAE 90.1, IECC and Title 24
OCS-950 Data Sheet (PDF)OCS-851 Data Sheet (PDF)PLC Wireless Solutions
